Sweatpad
A compact 16-key gaming hackpad focused on ergonomics, with RGB lighting and an OLED display. Built around SEEEDUINO XIAO RP2040, MX-style switches, 1N4148 diodes, SK6812 MINI-E LEDs, and DSA keycaps.
View on GitHub ↗

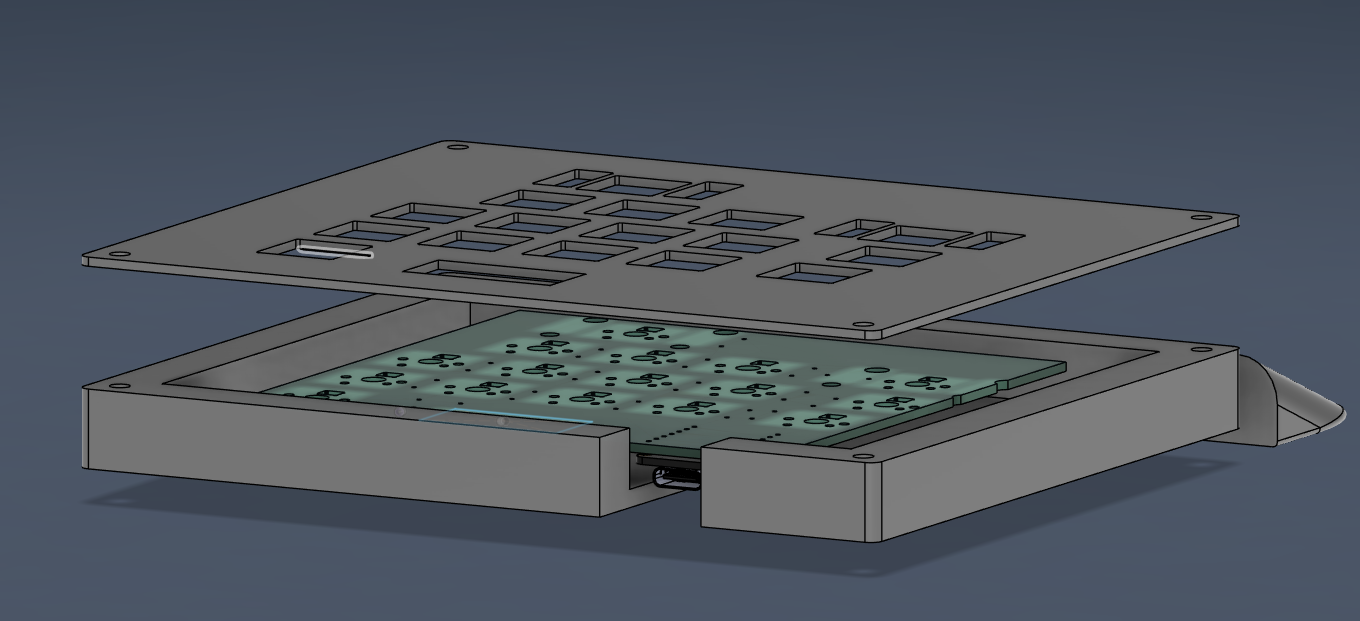

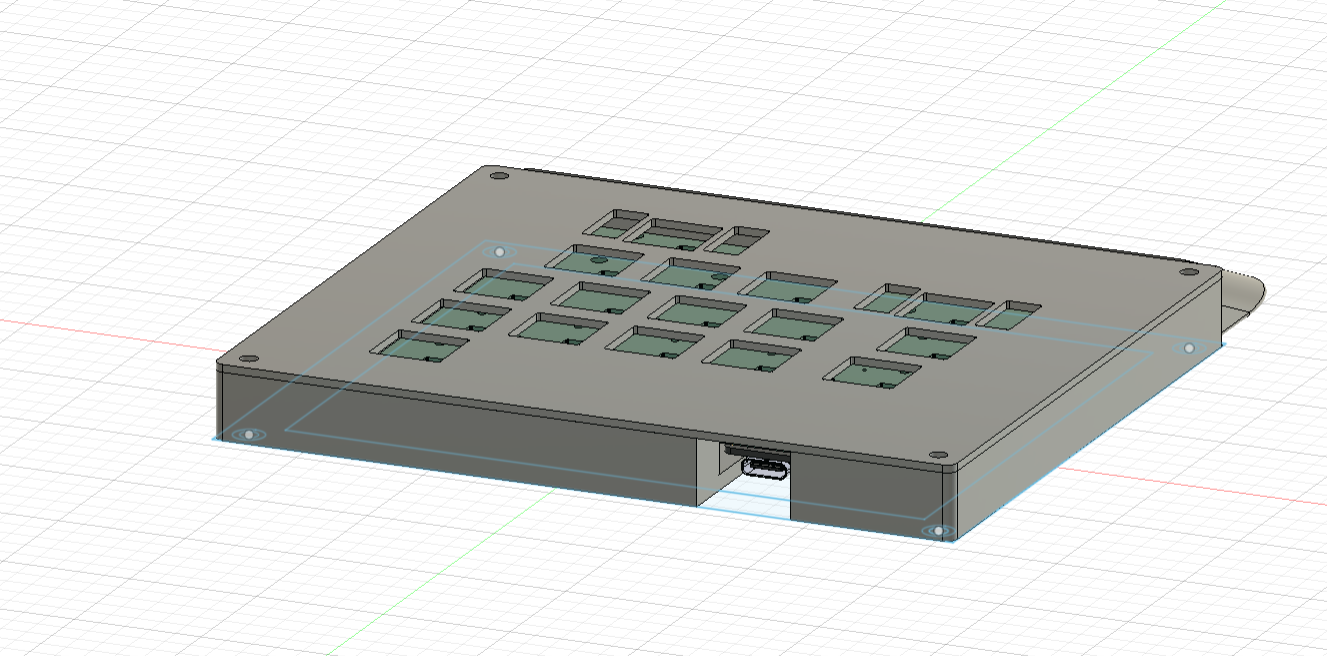

Explore the CAD model
Sweatpad assemblyLoads on request. Drag to rotate; scroll or pinch to zoom.
Converted from the project CAD. Colours are simplified; this is design geometry rather than a scan of the finished build.

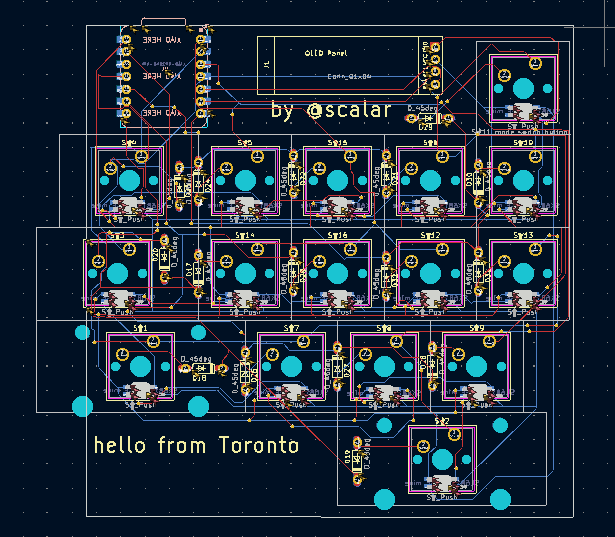

The repo includes CAD, PCB, firmware, and a BOM, plus notes on design constraints (e.g., 100x100 mm PCB restriction) and case adjustments.
