Nano LoRa
A custom RP2350B development board designed around LoRa communication and battery support.
View on GitHub ↗
The idea came from building my Pico-powered keyboard and wanting an affordable microcontroller board with wireless communication and battery support. Nano LoRa brings those features into a custom PCB with GPIO exposed through pin headers.

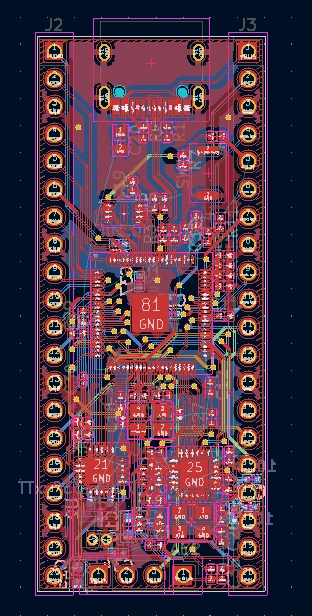

The repository contains the KiCad design and manufacturing Gerbers. The images show a 3D PCB render and board layout; board bring-up, firmware examples, and radio-range validation are not yet documented.
