Splitboard
A DIY split keyboard modelled after the Ergodox with wireless Bluetooth connectivity and on-board battery charging/management.
View on GitHub ↗

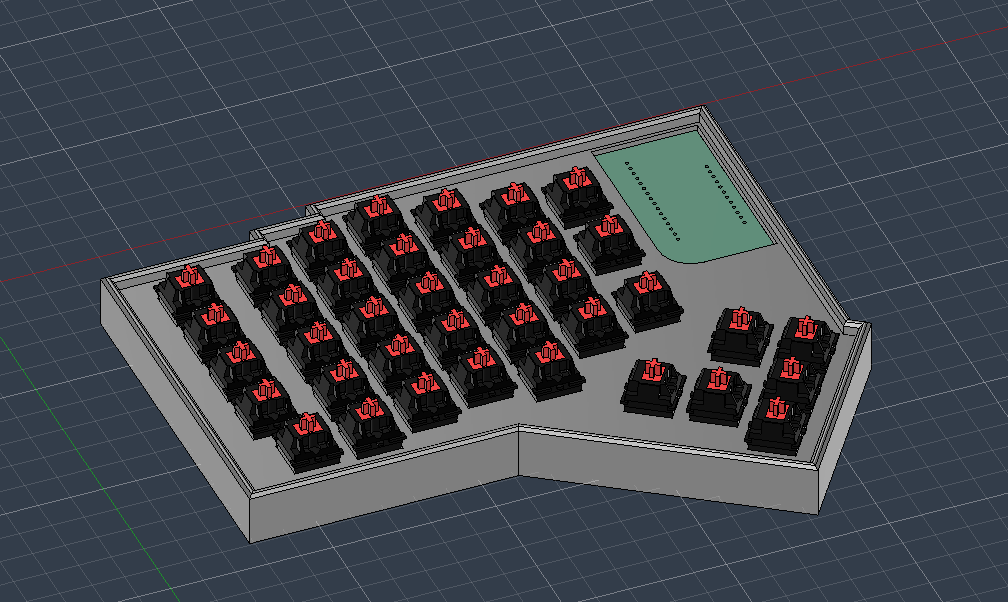

Explore the CAD model
SplitboardLoads on request. Drag to rotate; scroll or pinch to zoom.
Converted from the project CAD. Colours are simplified; this is design geometry rather than a scan of the finished build.

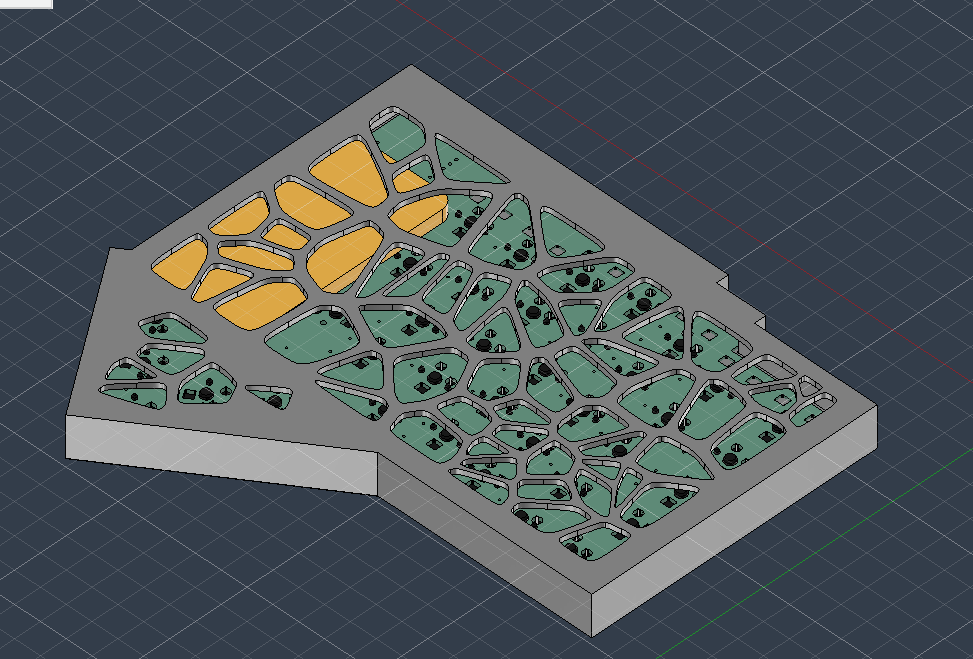

Designed for ergonomics and portability: two independent halves that can be arranged freely. Incorporates RGB lighting and Kailh hotswap sockets, with a refined case (low-profile walls ~3mm) and a voronoi pattern underside.

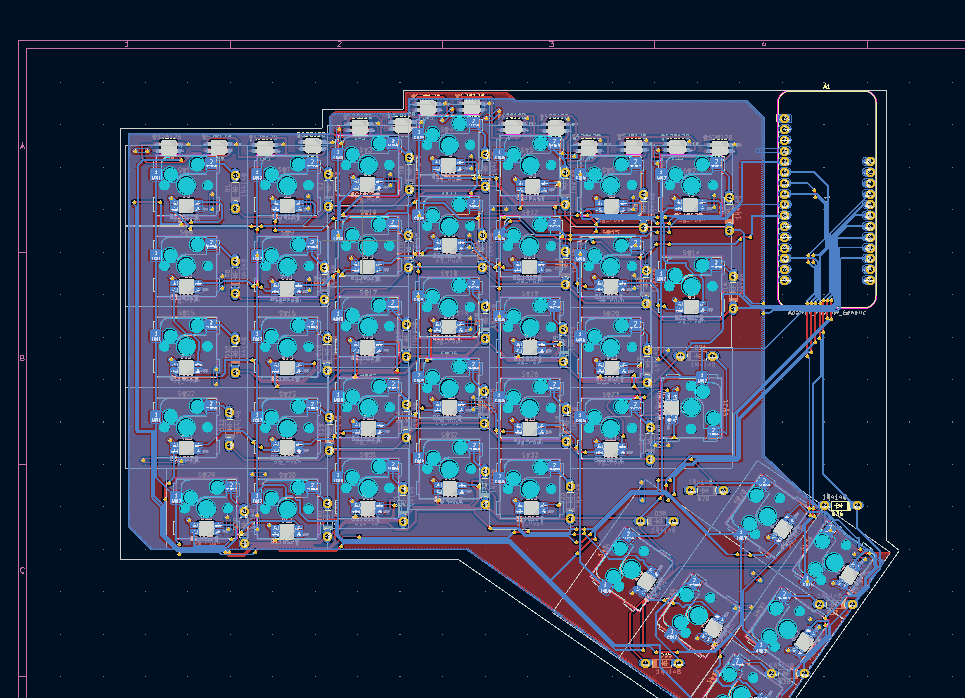

See the repo for CAD, PCB, firmware, and a detailed BOM along with design notes in the journal.
